24-channel logic analyzer.

A test instrument that reads digital signals. Our engineers in Shenzhen designed and built it, from board and firmware to enclosure and packaging, and delivered the batch.

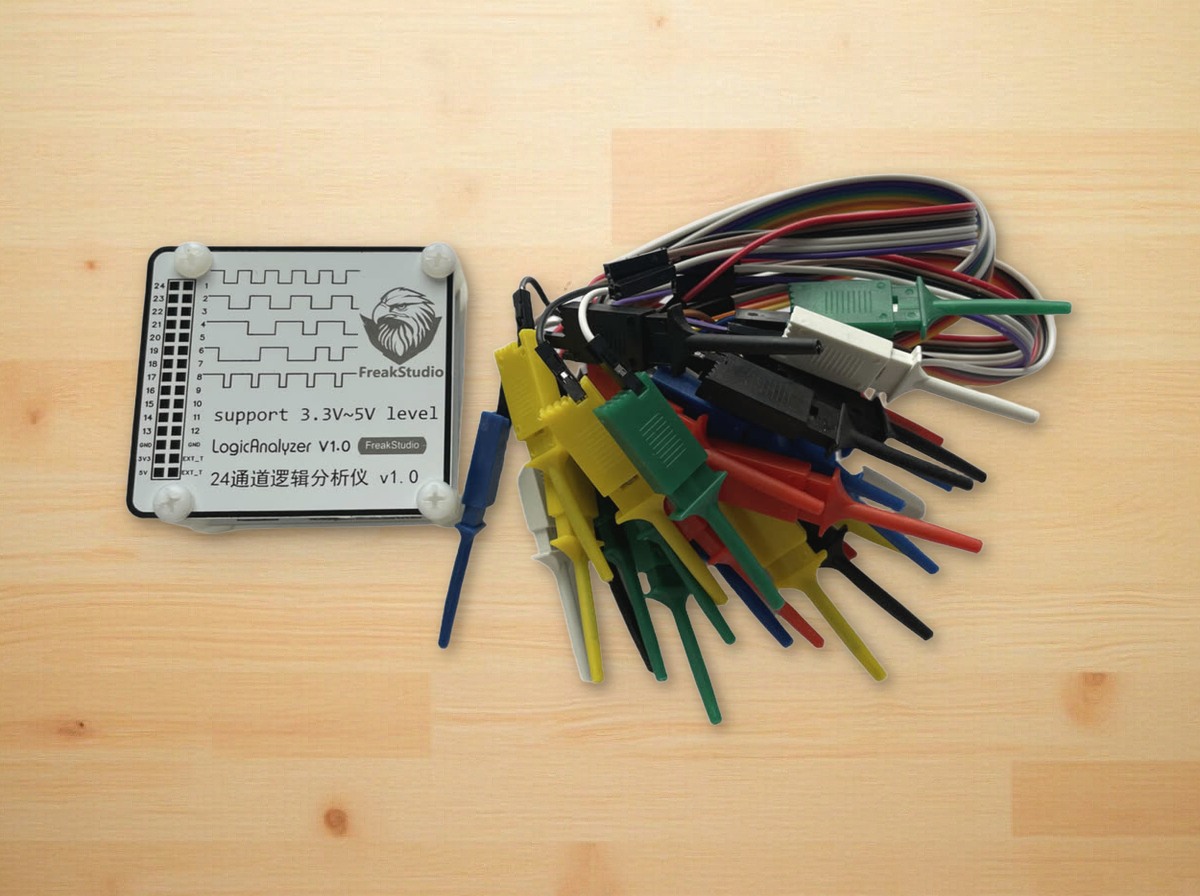

24-channel logic analyzer in a clear case, with a bundle of coloured test hooks
The analyzer and its test hooks. The panel is marked for 3.3 V to 5 V logic levels.

What it cost

Development fee
$800, one time
15 units at $20
$300
Total, delivered
$1,100

Most of the money went into development: about 73% of the total. Spread over 15 units, it added about $53 to each analyzer, more than the $20 the unit itself cost.

Not in the total

Certification
It did not go through FCC or CE. Certification is quoted separately when a product needs it.
Shipping and duties
Not in the price. The customer usually arranges freight once the units leave the factory.
Extras
Tutorials, training or a live demo are priced on top.

Ordering more

The $20 is the price for this batch of 15 and should not be stretched to 100 or 1,000 units. A larger batch is priced for its own quantity.
