Mecanum robot-arm car teaching kit

A teaching kit built around an Arduino UNO mecanum-wheel car with a 3D-printed body, a robotic arm and a separate handheld wireless controller. It is designed for robotics classes, maker labs and hands-on engineering practice. The kit ships with a five-lesson course and courseware.

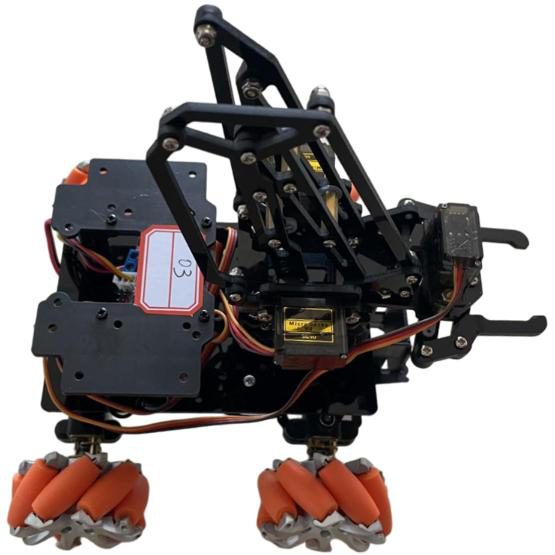

Side view of a black robot car with orange mecanum wheels and a servo-driven gripper arm, a handwritten '03' label on its side, on white
Robot car with arm, side view

Tech stack

Car controller
Arduino UNO
Chassis
Mecanum-wheel chassis for omnidirectional movement
Arm
Servo-driven robotic arm with gripper
Handheld controller
Dual joysticks, status display, wireless link, rechargeable battery compartment
Modes
Manual wireless control, obstacle avoidance, line tracking, attitude / angle control, arm operation
Structure
3D-printed housing and mechanical parts, modular expansion interface

What we built

  • Mechanical design: mecanum chassis, robotic arm, 3D-printed housing, module layout, controller enclosure
  • Electronics: car control board integration, wireless communication, motor drive, power distribution, remote controller electronics
  • Firmware: motion control, arm control, wireless control logic, teaching-oriented code structure, extensible module support
  • Five-lesson course: system overview and assembly, mecanum motion basics, wireless controller communication, arm control, structure design and final project
  • Courseware: teaching slides, code, documents and guides

Development time

15 days

Photos and design files

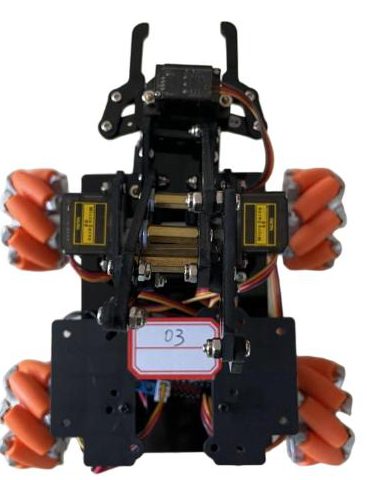

Front view of the robot car showing the gripper arm, its servos and four orange mecanum wheels, on white
Front view

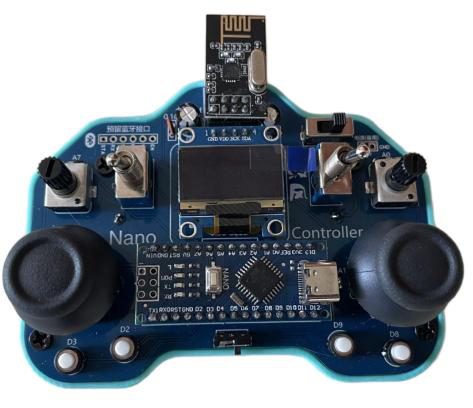

Blue handheld controller board with two joysticks, toggle switches, an OLED screen, a wireless module and 'Nano Controller' silkscreen, in a teal 3D-printed case
Handheld wireless controller

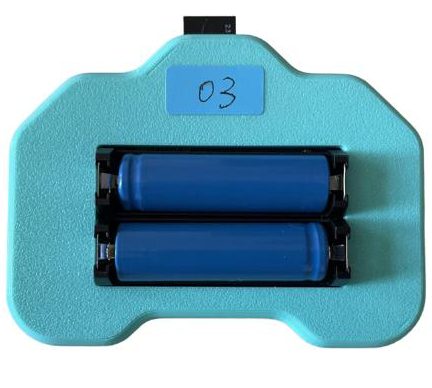

Back of the teal controller case with two blue cylindrical batteries in a holder and an '03' label
Controller battery compartment
